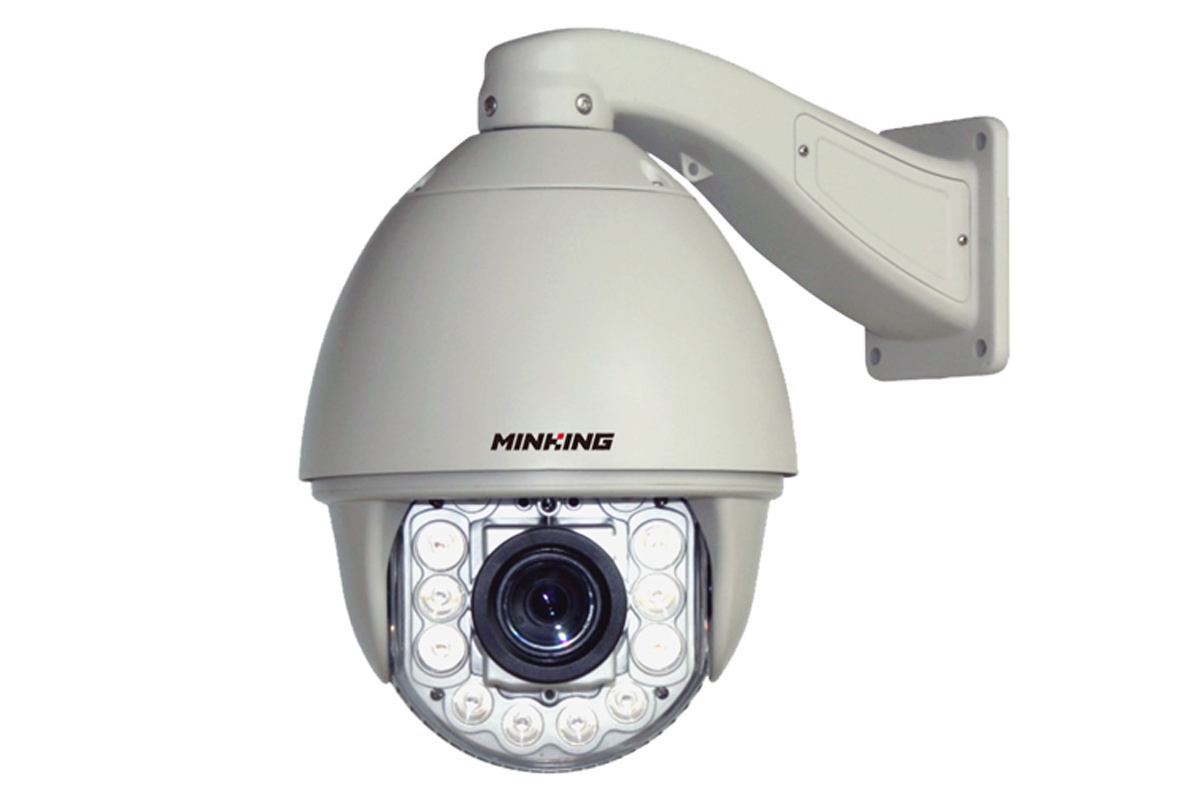

Video surveillance MG-HIR-M Series Print Page Features Key Features High quality, IR-LED auto adjust technology. Upto 37X optical zoom Full PTZ functions Pan 360° endless, Tilt 90°(0-90°) IR distance: 150m, low consumption Protection grade IP66 Power DC12V Anti-surge, Anti lightning Privacy Model No. MG-HIR235BF-M MG-HIR365BF-M Camera Brand MINKING MG-S22A MINKING MG-S36A Image device 1/3" SONY EXview HAD-II 960H CCD Wide dynamic range Digital WDR ON/OFF Day/Night Auto*/Manual Effective pixels 976（H）×582（L）480K Synchronization system internal Video output CVBS:1.0Vp-p Y/C White balance Auto/Indoor/Outdoor/One Push/Atw/Manual Scanning frequency 15.625KHz(H) 50Hz(V) S/N Ratio >50dB Horizontal resolution 650TVL Electronic shutter 1/50～1/10,000s Minimum illumination 0.001 lx（ICR ON, 1/60Sec) other Function Gain, BLC, DSS, 3D-DNR, Exposure, Gamma, Masking, Defog etc. Focal length f＝4.7～103.4mm 4.5mm～162mm Zoom ratio Total 264X Total 432X Optical 22X Optical 36X Digital 12X Digital 12X Focus & Iris Auto / Manual Mechanical/Electrical Pan speed 0°~350°/s Tilt speed 0°~120°/s Pan angle 360° Continuously Tilt angle 0°~90° IR distance 120-150m Preset position 220 positions (±0.1°) Tour 8 Pattern Yes Auto-scanning Yes Protection grade IP66 Communication Baud rate( 2400bps - 19200bps), RS485 control Protocols Support Pelco-D, Pelco-P Relative humidity 90% without agglomeration Work temperature -35°C~+55°C Power supply DC12V Weight 3.5Kg Gallery Request For More Information
