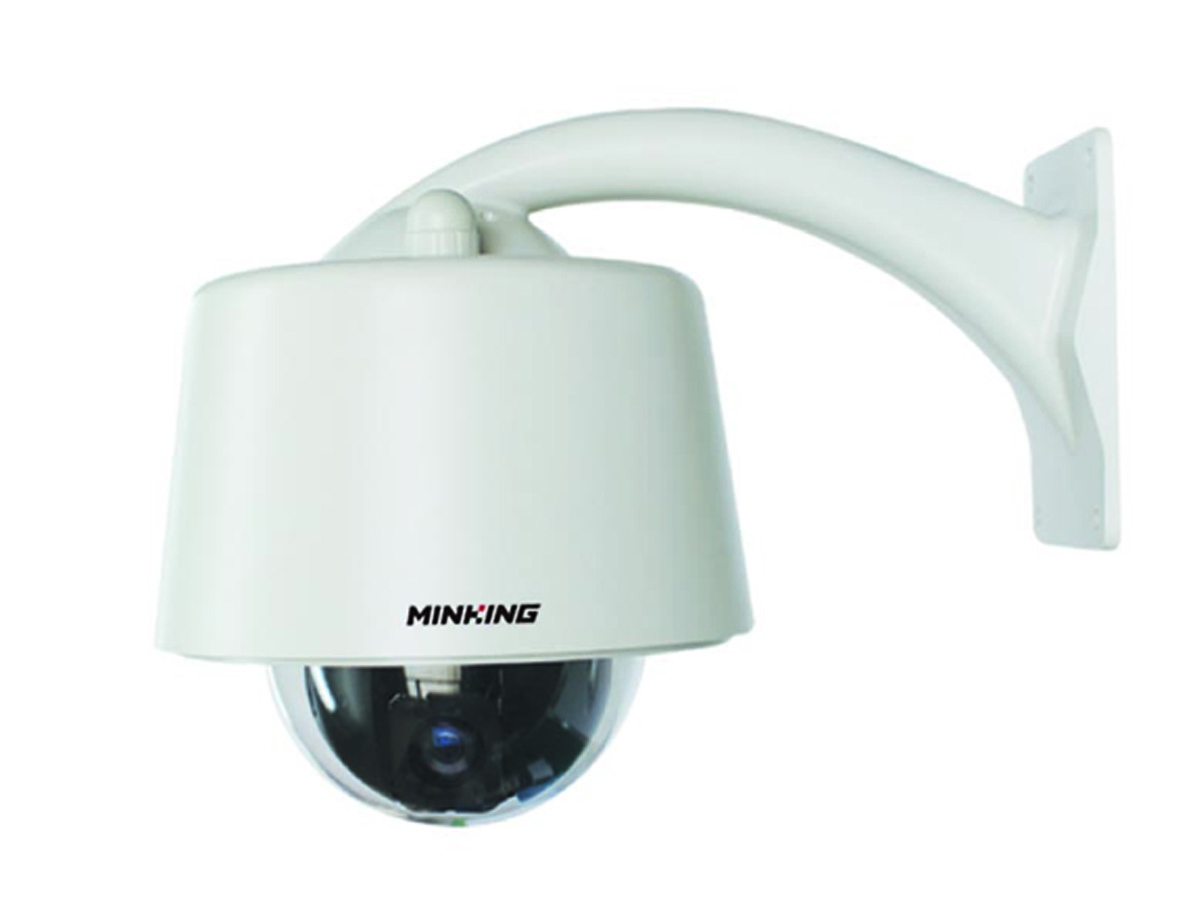

Video surveillance MG-OP Series Print Page Features Key Features Minking IP67 Speed Dome PTZ Fast Installation interface, very convenient! IP67 Design for Harsh Environment Full PTZ functions Pan 360° endless, Tilt 90°(0-90°) Various Bracket for wide Application Protection grade IP66 Power default AC24V Privacy Model No. MG-OP185BF MG-OP225BF Camera Brand SONY FCB-CX490EP MINKING MG-S22A Image device 1/4'' Exview HAD CCD 1/3" SONY EXview HAD 960H CCD Wide dynamic range ON/OFF/AUTO Digital WDR ON/OFF Day/Night Auto*/Manual Effective pixels 752(H)×582(V), 44OK 976（H）×582（L）480K Synchronization system Internal/external internal Video output CVBS:1.0Vp-p Y/C White balance Auto/Indoor/Outdoor/One Push/Atw/Manual Scanning frequency 15.625KHz(H) 50Hz(V) S/N Ratio >50dB Horizontal resolution 550TVL 650TVL Electronic shutter 1/3～1/10,000s 1/50～1/10,000s Minimum illumination 0.01 lx（ICR ON, 1/60Sec) 0.001 lx（ICR ON, 1/60Sec) other Function Gain, BLC, DSS, 3D-DNR, Exposure, Gamma, Masking, Defog etc. Focal length f＝4.1～73.8mm f＝4.7～103.4mm Zoom ratio Total 216X Total 264X Optical 18X Optical 22X Digital 12X Digital 12X Focus & Iris Auto / Manual Mechanical/Electrical Pan speed 0°~300°/s Tilt speed 0°~120°/s Pan angle 360° Continuously Tilt angle 0°~90° Alarm 3 alarm in， 1 alarm out Preset position 128 positions Tour 6 Pattern Yes Masking Yes Protection grade IP67 Communication Baud rate( 2400bps - 19200bps), RS485 control Protocols Support Pelco-D, Pelco-P etc. Total 16 Protocols Relative humidity 90% without agglomeration Work temperature -35°C~+55°C Power supply AC24V Weight 6Kg Gallery Request For More Information
