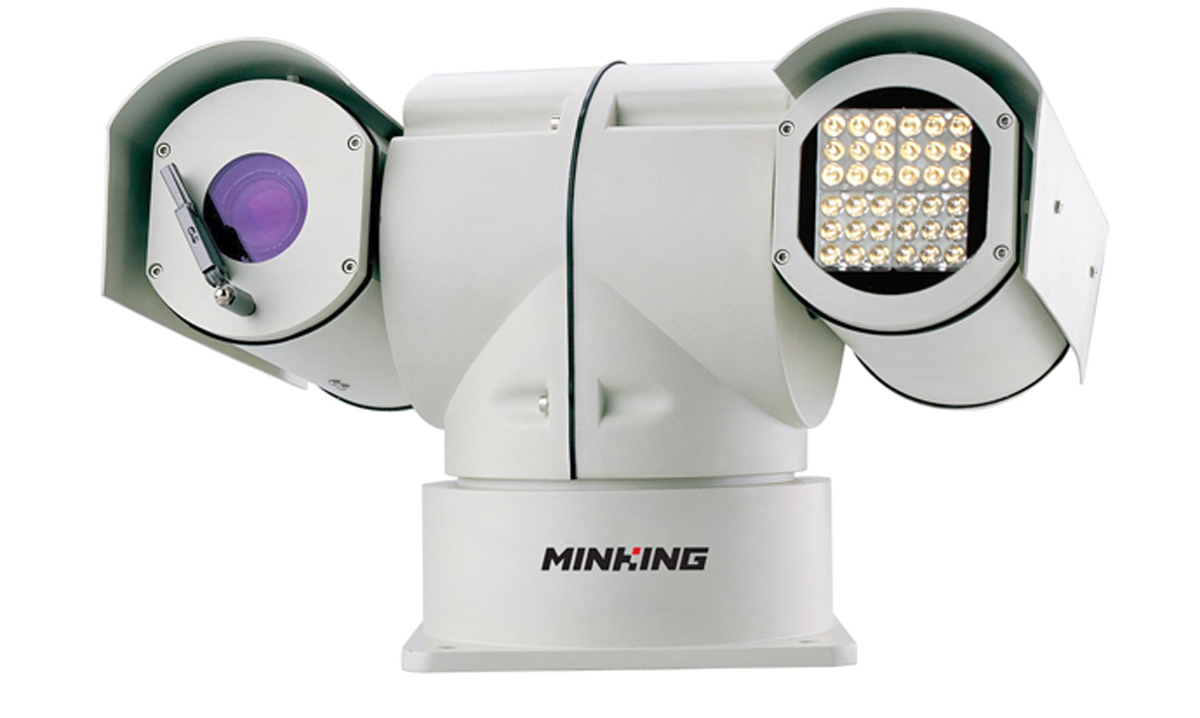

Video surveillance MG-TC26-R-NH Series Print Page Features Key Features Minking Patented Armored PTZ system H.264 compression, ONVIF protocols Upto HDTV 1080P / 2MP Full PTZ functions Pan 360° endless, Tilt 180°(±90°) IR LED Distance 100m With Wiper With vehicle mount Protection grade IP66 Power default AC24V Vehicle mount: DC12V (optional) Privacy Model No. MG-TC26S6300-R-NH MG-TC26H110-R-NH Camera Brand SONY FCB-CH6300 HITACHI DI-SC110-C Image device 1/2.8’’ EXmor CMOS 1/3'' CCD Optical Zoom 20X 18X Effective pixels 2.0MP, 1920(H)×1080(V) / 30fps 1.3MP, 1280(H)×960V) / 20fps Minimum illumination 0.005Lux(ICR-ON) 0.02Lux(IR-CUT OFF 1/4s) Day/Night IR Cut Filter Auto/Manual S/N Ratio >50dB Noise Reduction ON/OFF Wide dynamic range Support other Function Auto White Balance, Auto Gain Control(AGC), Backlight Compensation(BLC) Electronic shutter Auto/Manual(1/10000s to 1/1s) Auto/Manual(1/10000s to 1/4s) Focal length f＝4.7～94mm f＝4.7～84.6mm Focus & Iris Auto / Manual Mechanical/Network Pan speed 0°~60°/s, (Pan Speed for Preset: Max 100°/s ) Tilt speed 0°~40°/s, (Tilt Speed for Preset: Max 60°/s ) Pan angle 360° Continuously Tilt angle +90°~-90° Alarm 1 alarm in, 1 alarm out Preset position 128 positions Tour 6 Pattern Yes Masking Yes Protection grade IP66 Image Compression H.264 Audio Compression MPEG4 AAC/G.711 3D Positioning Support Network Protocol TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP ONVIF Support ONVIF Relative humidity 90% without agglomeration Work temperature -35°C~+55°C Power supply AC24V, DC12V (optional) Shock resistance ≥4G Weight 6Kg Gallery Request For More Information
