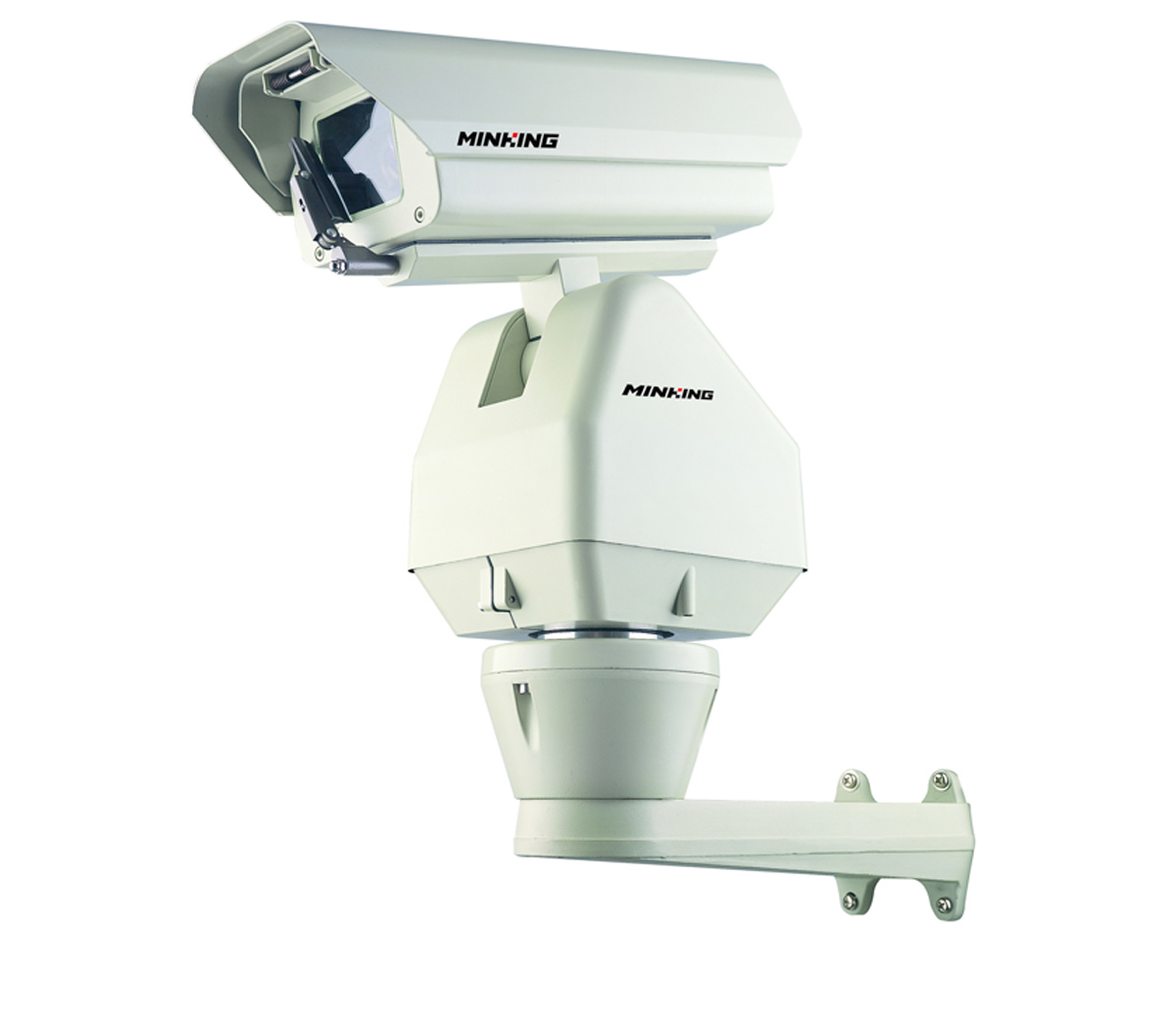

Video surveillance MG-TK35-NH Series Print Page Features Key Features Professional Positioning system Full PTZ functions H.264 compression, ONVIF protocols Upto HDTV 1080P / 2MP 128 Preset Position Pan speed: 140°/s Max. Pan 360° endless, Tilt 100° (+27°~-73°) With Wiper Protection grade IP66 Power AC24V Privacy Model No. MG-TK35S6300-NH MG-TK35H110-NH Camera Brand SONY FCB-CH6300 HITACHI DI-SC110-C Image device 1/2.8’’ EXmor CMOS 1/3'' CCD Optical Zoom 20X 18X Effective pixels 2.0MP, 1920(H)×1080(V) / 30fps 1.3MP, 1280(H)×960V) / 20fps Minimum illumination 0.005Lux(ICR-ON) 0.02Lux(IR-CUT OFF 1/4s) Day/Night IR Cut Filter Auto/Manual S/N Ratio >50dB Noise Reduction ON/OFF Wide dynamic range Support other Function Auto White Balance, Auto Gain Control(AGC), Backlight Compensation(BLC) Electronic shutter Auto/Manual(1/10000s to 1/1s) Auto/Manual(1/10000s to 1/4s) Focal length f＝4.7～94mm f＝4.7～84.6mm Focus & Iris Auto / Manual Mechanical/Network Pan speed 0°~140°/s, (Pan Speed for Preset: Max 140°/s ) Tilt speed 0°~55°/s, (Tilt Speed for Preset: Max 80°/s ) Pan angle 360° Continuously Tilt angle +27°~-73° Alarm 1 alarm in, 1 alarm out Preset position 128 Preset positions Tour 10 Pattern Yes Masking Yes Protection grade IP66 Image Compression H.264 Audio Compression MPEG4 AAC/G.711 3D Positioning Support Network Protocol TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP ONVIF Support ONVIF Relative humidity 90% without agglomeration Work temperature -35°C~+55°C Power supply AC24V Weight 10Kg Gallery Request For More Information
